Description

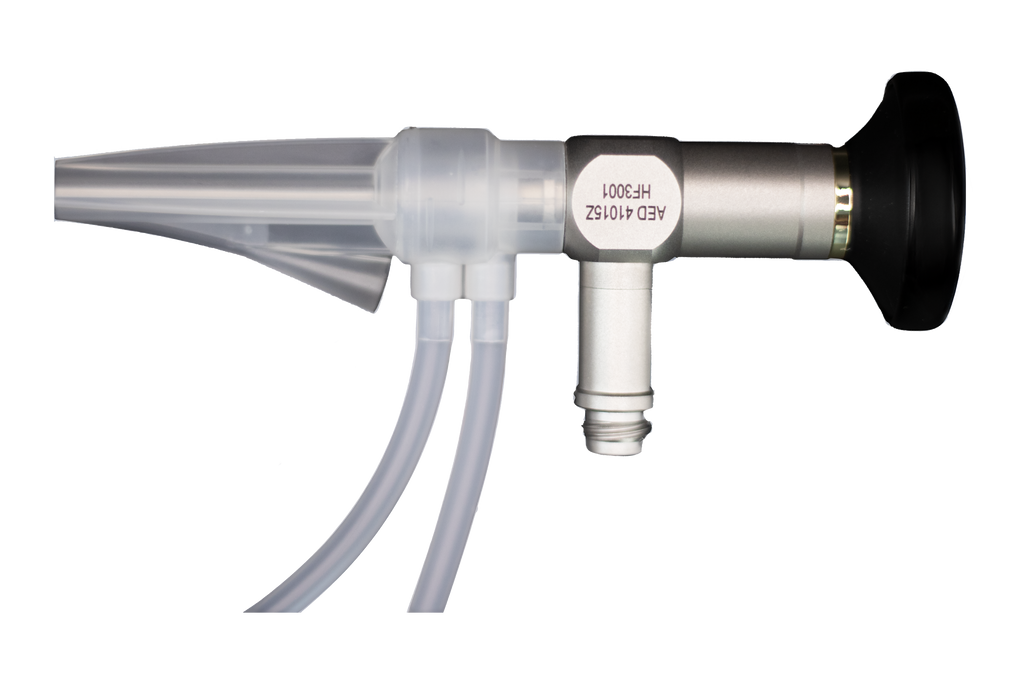

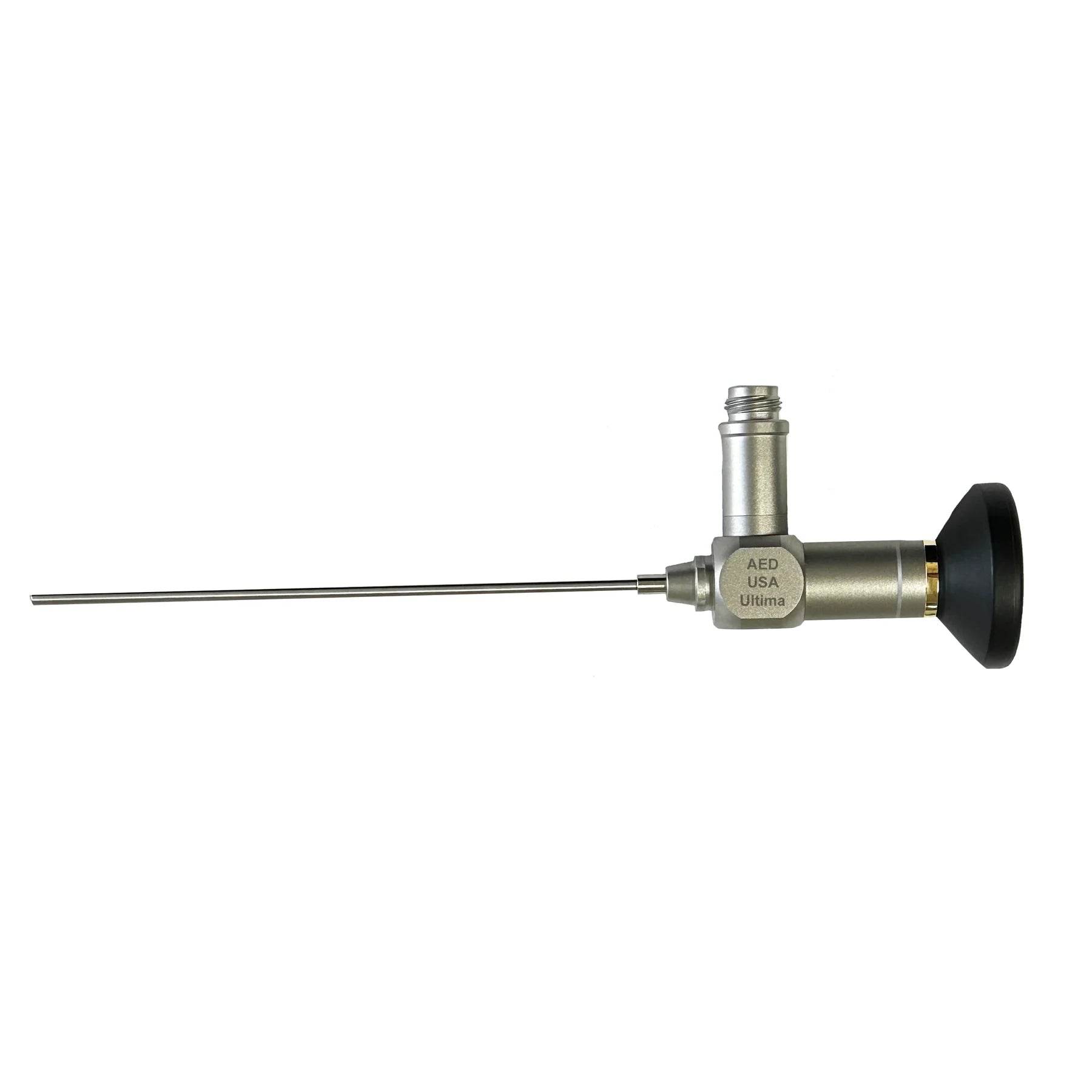

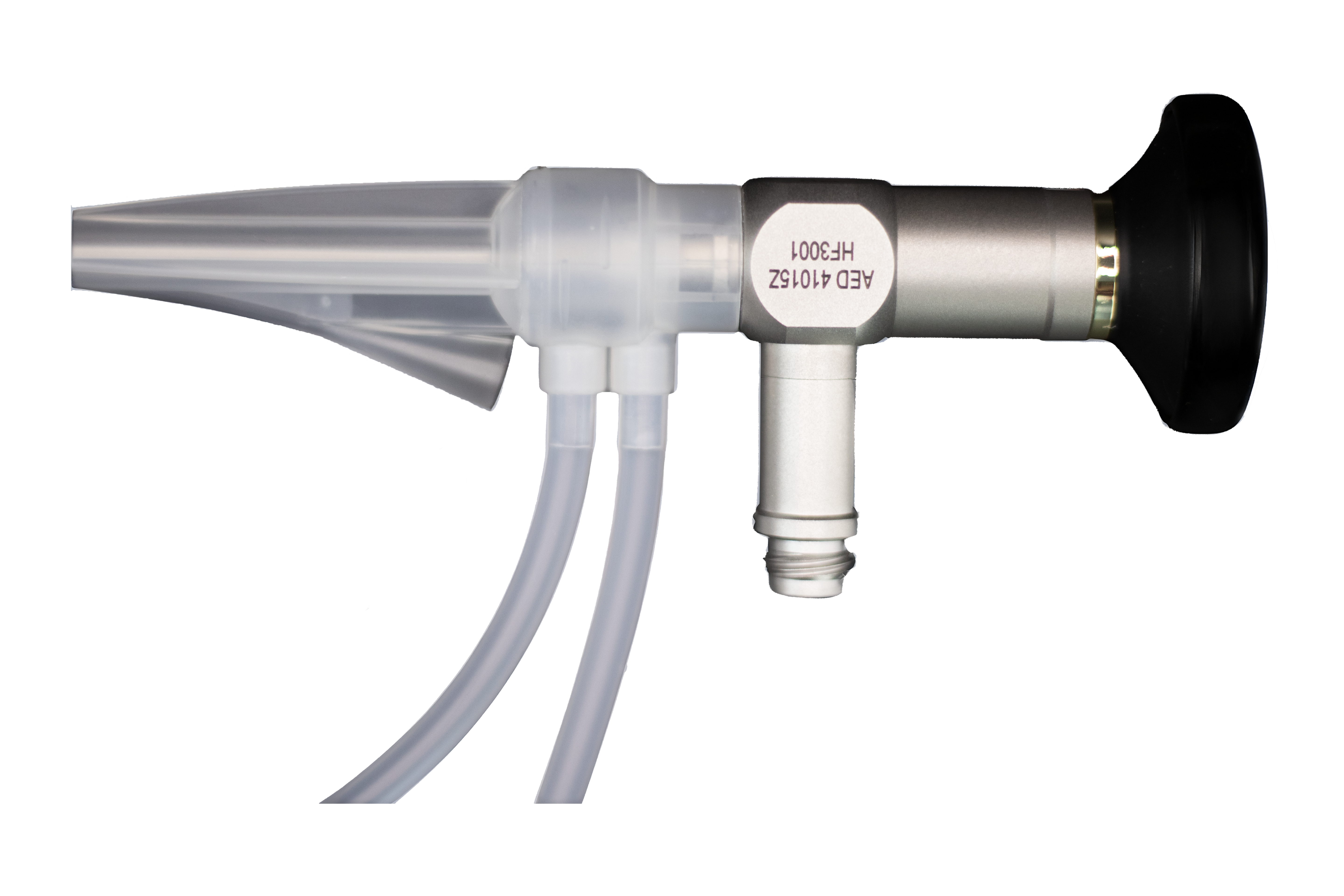

The Bulkamid-style cystoscope combines a 2.7 mm diameter, 113 mm working length and 0° forward view with Tru-Vivid HD rod-lens optics for urological visualization.
Key Features and Benefits
- HD rod-lens optics: The Tru-Vivid system supports high-definition visualization in a compatible urological setup.
- Sapphire distal lens: A soldered, scratch-resistant optical surface that still requires appropriate handling and care.
- High-aperture light fibers: Support illumination of the viewing area.
- Internal optical retaining system: Designed to maintain optical alignment.
- 0° forward view: Looks directly along the shaft rather than at an angled viewing direction.
Technical Specifications
| Attribute | Details |
|---|---|
| Minerva ordering SKU | 41015Z |
| Catalog reference | 41-0152A |
| Diameter | 2.7 mm |
| Working length | 113 mm |
| Viewing direction | 0° |
| Optical system | Tru-Vivid HD rod lens |
| Distal lens | Soldered sapphire, scratch-resistant |
| Illumination | High-aperture light fibers |
| Optical support | Internal optical retaining system |
| Country of manufacture | USA |
Clinical Use Cases
For clinics, hospitals and ambulatory surgery centers selecting a Bulkamid-style cystoscope for a compatible urological setup. Use with Bulkamid sheath 10087-001 and follow the supplied instrument instructions for preparation, use and reprocessing.
Compatibility and Selection
This model is compatible with Bulkamid sheath 10087-001. Compatibility with other sheaths is not specified in this listing.
Related selection: 0-degree cystoscopes.
How to Order
Use Add to Quote on this page and reference SKU 41015Z to request pricing, availability and model-specific documentation. Include the sheath or system details needed for the quotation.
