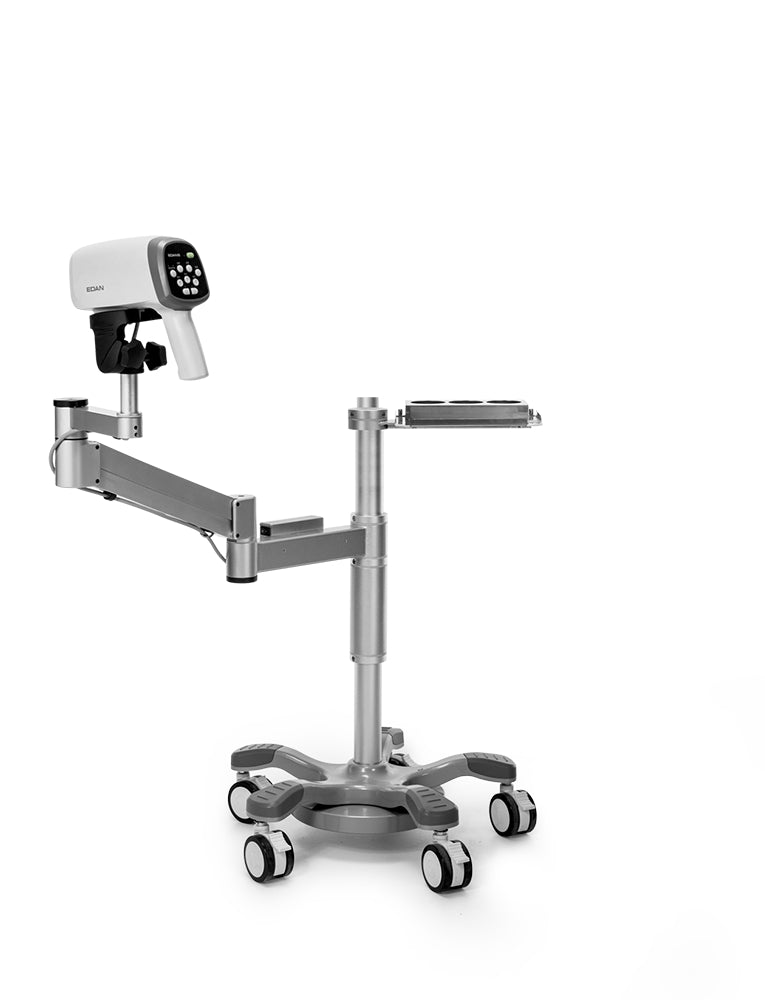

The EDAN C6AHD Video Colposcope is designed for comprehensive cervical examination with high-resolution imaging, LED illumination, and software tools that support image capture, reporting, and patient management.
Description
The EDAN C6AHD is a digital video colposcope for gynecological and cervical examination workflows. According to EDAN product materials, it includes a bright LED cold lighting system, electronic green filter, high-resolution camera, and software features intended to improve documentation and workflow efficiency.
Key Features
- 40 LED lights
- Real-time magnification from 1–60x
- High-resolution camera with HD signal output
- Electronic green filter
- DICOM 3.0 supportive workflow
- Patient management software
- Image capture and PDF report export
- Comparison analysis and findings gallery
Technical Specifications
- Model: C6AHD
- Pixel Count: 2,130,000
- Focus Mode: Manual, Auto
- Illumination: ≥3000 Lux
- Magnification: 1 ~ 60X
- Operation Distance: 6X: ≥ 200 mm-300 mm
- Field of View: 3X: ≥ φ100 mm; 18X: ≥ φ15 mm
- System Resolution: ≥ 900 TVL
