- Premium performance compact ultrasound platform with advanced imaging modes.
- 15‑inch HD LCD, dual touch screens, and gesture‑control interface for fast workflows.
- Removable battery and portable design to support point‑of‑care and mobile scanning.
Acclarix AX8 Overview

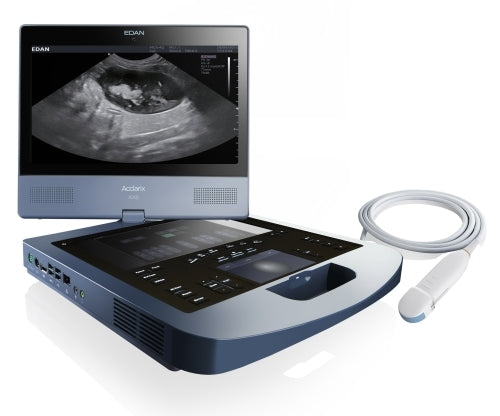

The Edan Acclarix AX8 ultrasound machine is a fully featured, premium compact diagnostic system designed for clinicians who need high‑end performance without a full‑size cart.
Its 15‑inch HD display, dual touch screens, advanced imaging technologies, and portable design help your team deliver confident ultrasound imaging across general imaging and point‑of‑care applications.
Key Features and Clinical Benefits
- Premium imaging platform with advanced processing and imaging modes to support demanding diagnostic work.
- 15‑inch HD LCD monitor reinforced with specially engineered glass, with tilt‑and‑swivel design for comfortable viewing in procedures.
- Dual touch screens: a 10‑inch main touch screen with gesture‑control interface and an additional 5‑inch touch screen with virtual trackball, designed to replace traditional hard keys and trackballs.
- Fully sealed control panel with frequently used hard keys to support infection‑control protocols and easier cleaning.

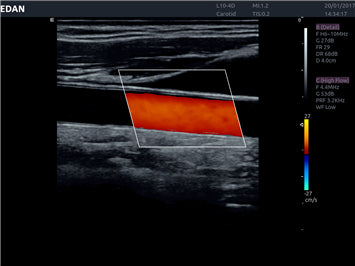

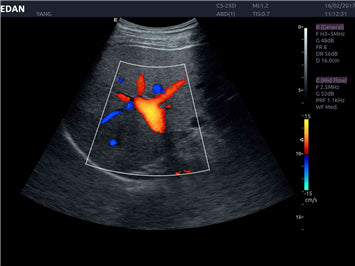

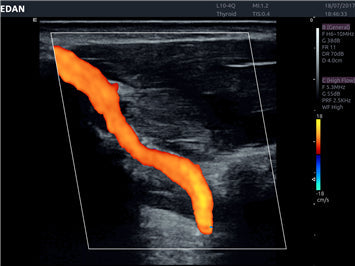

- Advanced imaging technologies such as tissue adaptive B‑mode imaging, adaptive Doppler, harmonic imaging, speckle reduction (eSRI), spatial compound imaging, panoramic imaging, and needle visualization to improve clarity and confidence.
- Intelligent workflow tools including virtual TGC, user‑defined presets, auto optimization, and streamlined menus to reduce knob‑turning and exam time.
- Removable lithium‑ion battery that provides approximately 75 minutes of typical exam use, helping you scan where power outlets are limited.
- Broad application support for abdominal, OB/GYN, cardiac, vascular, musculoskeletal, nerve, pediatric, and small‑parts imaging, according to labeled indications and local approvals.
Typical Clinical Applications
The Acclarix AX8 ultrasound machine is designed for general imaging and point‑of‑care use in departments such as radiology, OB/GYN, cardiology, vascular labs, anesthesia, emergency medicine, critical care, and musculoskeletal clinics, in line with its indications for use and local labeling.
Acclarix AX8 Ultrasound Specifications
System and Physical
| System type | Premium compact diagnostic ultrasound system for general imaging and point‑of‑care applications. |
|---|---|
| Display | 15‑inch wide‑screen HD LCD monitor with reinforced glass, tilt and swivel for ergonomic viewing. |
| Touch screens | 10‑inch main touch screen with gesture‑control user interface, plus 5‑inch secondary touch screen with virtual trackball. |
| Control panel | Fully sealed control panel with frequently used hard keys to support infection control and easy cleaning. |
| Portability | Compact footprint designed for trolley or tabletop use; overall design optimized for mobility in clinical environments. |
| Battery | Removable lithium‑ion battery, approximately 75 minutes of typical exam use (actual time varies with mode and settings). |
| Transducer Port | One active transducer port, with configurations varying by region and package. |
Imaging and Modes
| Imaging modes | B‑mode, M‑mode, Color Doppler, Power Doppler (PDI/DPDI), PW Doppler, CW Doppler; dual and triplex combinations on supported presets. |
|---|---|
| Advanced imaging | Tissue adaptive B‑mode imaging, adaptive Doppler imaging, harmonic imaging, speckle reduction imaging (eSRI), spatial compound imaging, panoramic imaging, and needle visualization. |
| Depth range | Approximate depth range up to 30 cm, depending on transducer and application (see datasheet for details). |
| Frequency range | Supports a broad frequency range with multiple fundamental and harmonic options; exact range depends on the selected transducer. |
Workflow and Data Management
| Workflow tools | Virtual TGC, user‑defined presets, auto optimization, and streamlined menus to support rapid scanning and repeatable protocols. |
|---|---|
| Data storage | Solid‑state storage (SSD) for images and cine loops; capacity varies by configuration. |
| Connectivity | DICOM networking, USB export, and network transfer; optional Wi‑Fi depending on configuration. |
Specifications may change over time. For the most current and complete details, refer to the official Acclarix AX8 datasheet and your local product labeling.
Ordering, Configurations, and Compliance
The Acclarix AX8 ultrasound machine is available in multiple configurations so you can match probe sets, software options, and accessories to your clinical practice and patient population.
- Base configuration: AX8 main unit with 15‑inch HD monitor, dual touch screens, power supply, and standard accessories, suitable for general imaging use.
- Optional probes: convex, linear, phased‑array, and specialty transducers covering abdominal, OB/GYN, cardiac, vascular, MSK, nerve, pediatric, and small‑parts applications (availability varies by region).
- Optional trolley and accessories: ergonomic trolley, probe holders, gel holders, and other accessories to support departmental or point‑of‑care workflows.
- Optional software and connectivity: additional clinical packages and network options to support reporting and integration needs.
Regulatory clearances, indications for use, and product availability vary by country and region. This information is intended for healthcare professionals. Always consult the official labeling, Instructions for Use (IFU), and local regulations for complete indications, contraindications, warnings, and safety information.
Brochures and Downloads
Use these resources to review detailed specifications, share information with your team, or support internal evaluations and purchasing discussions.
Acclarix AX8 Frequently Asked Questions
What is the Edan Acclarix AX8 ultrasound machine designed for?
The Acclarix AX8 is designed as a premium compact diagnostic ultrasound system for general imaging and point‑of‑care applications such as abdominal, OB/GYN, cardiac, vascular, musculoskeletal, nerve, pediatric, and small‑parts exams, according to its labeled indications.
What makes the Acclarix AX8 different from other compact ultrasound systems?
The AX8 combines dual touch screens, a gesture‑control user interface, advanced imaging modes, and a sealed control panel in a compact design, helping clinicians achieve high image quality while supporting mobility and infection control.
Does the Acclarix AX8 connect to PACS and hospital systems?
Yes. The Acclarix AX8 supports DICOM networking and data export via USB and network connections, enabling integration with PACS and hospital information systems when configured according to your site’s requirements.
Service, Training, and Support
We support your investment in the Acclarix AX8 ultrasound machine with service plans, training, and technical assistance designed to keep your ultrasound program running smoothly and to help clinicians feel confident at the point of care.
- Flexible warranty and service options tailored to your facility.
- Onsite or remote applications training for physicians, sonographers, and staff (where available).
- Technical support and parts through authorized service channels.
