M5 3D Bladder Scanner – Bladder Volume & Wall Thickness

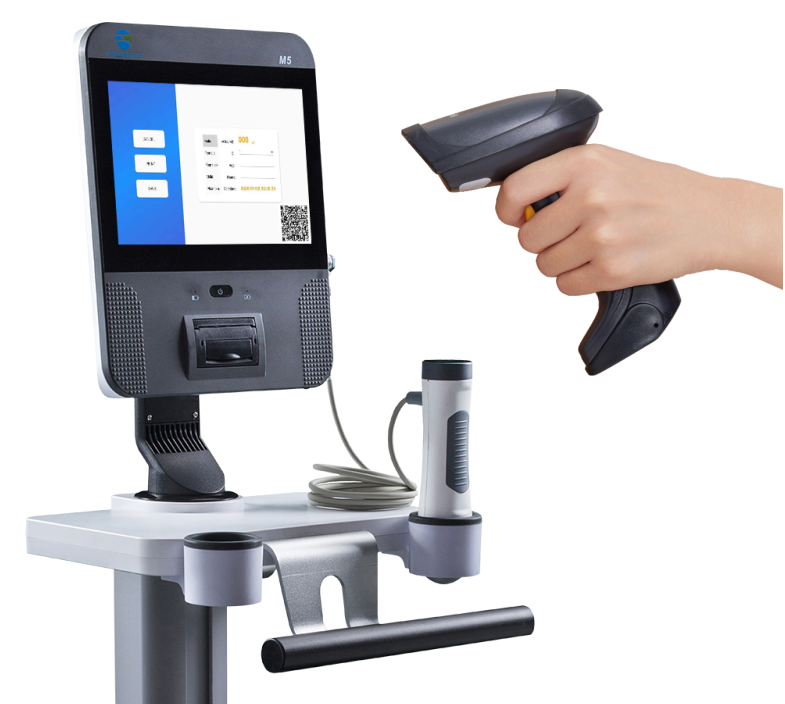

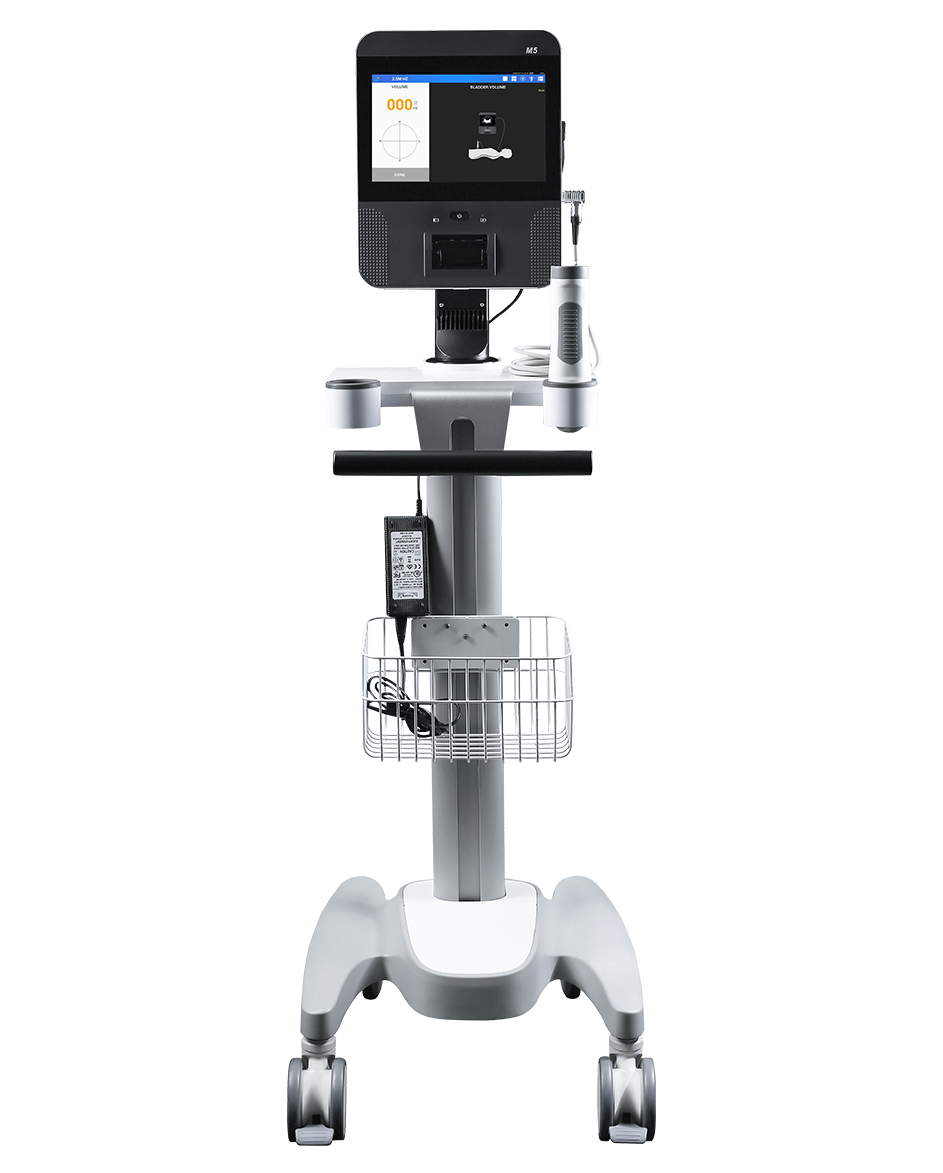

The M5 is a 3D bladder scanner designed for non-invasive measurement of bladder volume and bladder wall thickness in hospitals, long term care facilities, rehabilitation centers, and urology clinics. It combines a console with a 10.1-inch capacitive touchscreen display, a built-in printer, a probe with an ultrasound transducer, and a dedicated medical cart.
With high volume measurement accuracy, no calibration required, and fast scanning times, the M5 provides a reliable basis for bladder management, post-void residual assessment, and information to support bladder and kidney disease diagnosis.
Key features and clinical benefits
- Non-invasive bladder volume and wall thickness: Measures bladder volume and bladder wall thickness without catheterization, supporting safer, more comfortable assessments.
- High volume measurement accuracy: Volume measurement accuracy of ±7% helps clinicians make confident bladder management decisions.
- No calibration required: Designed to operate without routine calibration, simplifying maintenance and reducing downtime.
- Automatic patient type selection: Automatically selects patient type to streamline setup and scanning.
- Pubic bone interference indicator: A dedicated indicator helps the operator recognize and adjust for pubic bone interference for clearer measurements.
- Supports multiple care settings: Suitable for hospitals, long term care, rehabilitation centers, and urology clinics that need consistent bladder volume and wall thickness data.
Display, workflow, and usability
The M5 is built around a 10.1-inch capacitive touchscreen console with integrated information management, printing, and review functions.
- 10.1-inch capacitive touchscreen display with touch key operation.
- Bladder positioning guide on the mini screen of the probe to assist probe placement.
- Both patient information and bladder values are printable via the built-in printer.
- Search for a patient by name to quickly review all historical readings for that patient.
- Information storage for images, results, and other patient information.
- Information management functions to check history, restore data, store, print, delete, and export information.
- Information entry fields for patient gender, ID, name, and age.
3D and 2D imaging capabilities
The M5 combines 3D and 2D imaging modes to provide a comprehensive view of bladder volume and bladder wall thickness.
- 3D bladder scan display shows real-time scan images, bladder volume value, bladder shape, bladder projection, and 3D image.
- 2D bladder scan display shows real-time scan images and bladder wall thickness value.
- 2D tissue harmonic imaging to enhance image quality.
Technical highlights
| Category | Detail |
|---|---|
| Application | Non-invasive bladder volume and bladder wall thickness measurement |
| Probe | P1 / 2.5 MHz 3D mechanical sector-scanning probe |
| Ultrasonic frequency | Nominal ultrasonic operating frequency: 2.5 MHz ±15% |
| Volume measurement range | 0 ml – 999 ml |
| Volume measurement accuracy | ±7% for volume range from 100 to 999 ml; ±7 ml for volume < 100 ml |
| Volume display resolution | 1 ml |
| Scanning time | Less than 5 seconds |
| Bladder wall thickness range | 0 mm – 15 mm |
| Bladder wall thickness accuracy | ±10% ±1 mm |
| Display | 10.1-inch capacitive touchscreen, touch key operation |
| Imaging | 2D tissue harmonic imaging; 3D and 2D bladder scan displays |
| Battery | Battery capacity: 3200 mAh |
| Information storage | Images, results, and other patient information can be stored |
| Information printing | Print measurement results and pictures |
| Information management | Check history, restore database info, store, print, delete, and export information |
| Information entry | Patient gender, ID, name, and age can be entered and saved |
Frequently asked questions
What does the M5 bladder scanner measure?
The M5 measures bladder volume and bladder wall thickness non-invasively, providing data to support bladder management and diagnostic decisions.
How accurate is the M5 for bladder volume measurement?
The M5 offers bladder volume measurement accuracy of ±7% between 100 and 999 ml, and ±7 ml for volumes below 100 ml.
Does the M5 require calibration?
No. The M5 is designed with no calibration required, helping reduce maintenance and downtime.
Where can the M5 3D bladder scanner be used?
The M5 is suitable for hospitals, long term care facilities, rehabilitation centers, and urology clinics that need reliable bladder volume and wall thickness assessment.
