Description

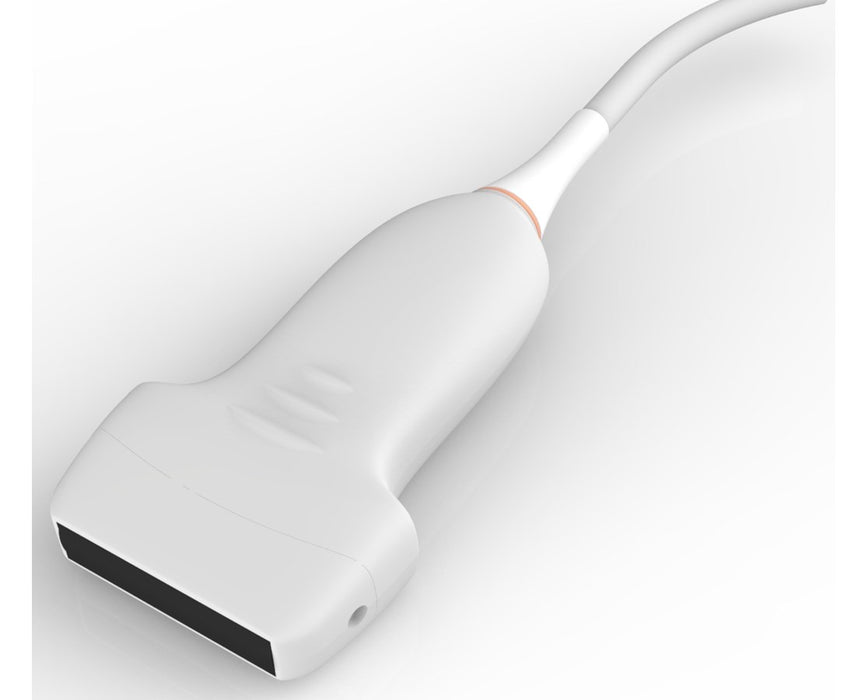

The L17-7HQ ultrasound probe is a linear transducer designed for small parts, peripheral vascular, and musculoskeletal imaging. It is compatible with AX2, AX3, and LX9 ultrasound systems and delivers dependable performance for routine and advanced examinations.
Clinicians use the L17-7HQ probe for small parts, peripheral vascular, and musculoskeletal studies where consistent image quality is required. It is suitable as a primary or replacement linear transducer for AX3 series systems.
Clinical Applications
- Small parts ultrasound imaging
- Peripheral vascular ultrasound imaging
- Musculoskeletal ultrasound imaging
Transducer Specifications
| Transducer model | L17-7HQ |
|---|---|
| Transducer type | Linear |
| Bandwidth @ -20 dB | 3-19 MHz |
| Bandwidth @ -6 dB | 5-17 MHz |
| Elements | 128 |
| Footprint | 38 mm |
| Convex radius | N/A |
| Field of view (FOV) | N/A |
| Display depth | 11 cm |
| Biopsy guide | Available |
| Cable length | 2.0 m |
Key Features
- Ultrasound probe optimized for AX2, AX3, and LX9 systems.
- Configured for small parts, peripheral vascular, and musculoskeletal applications.
- Frequency range 5-17 MHz with bandwidth 3-19 MHz for versatile clinical use.
- 192-element array designed to support diagnostic image quality.
- 2.0 m cable length for flexible probe positioning at the point of care.
Frequently Asked Questions
Is the L17-7HQ probe compatible with AX2, AX3, and LX9 ultrasound systems?
Yes, the L17-7HQ transducer is designed for use with AX2, AX3, and LX9 ultrasound platforms. Please verify compatibility with your specific configuration before ordering.
What types of exams is the L17-7HQ best suited for?
The L17-7HQ is best suited for small parts, peripheral vascular, and musculoskeletal imaging where reliable performance and consistent image quality are required.
Ready to order or need help confirming compatibility with your AX2, AX3, or LX9 system? Contact our ultrasound team, email us at sales@minervahealthinc.com, or call 833-464-6378 for availability, current pricing, and bundle options.
Specifications are subject to change without notice. Probe compatibility and availability may vary by system configuration and region.
